PET Recycling Line

PET Recycling Line Description:

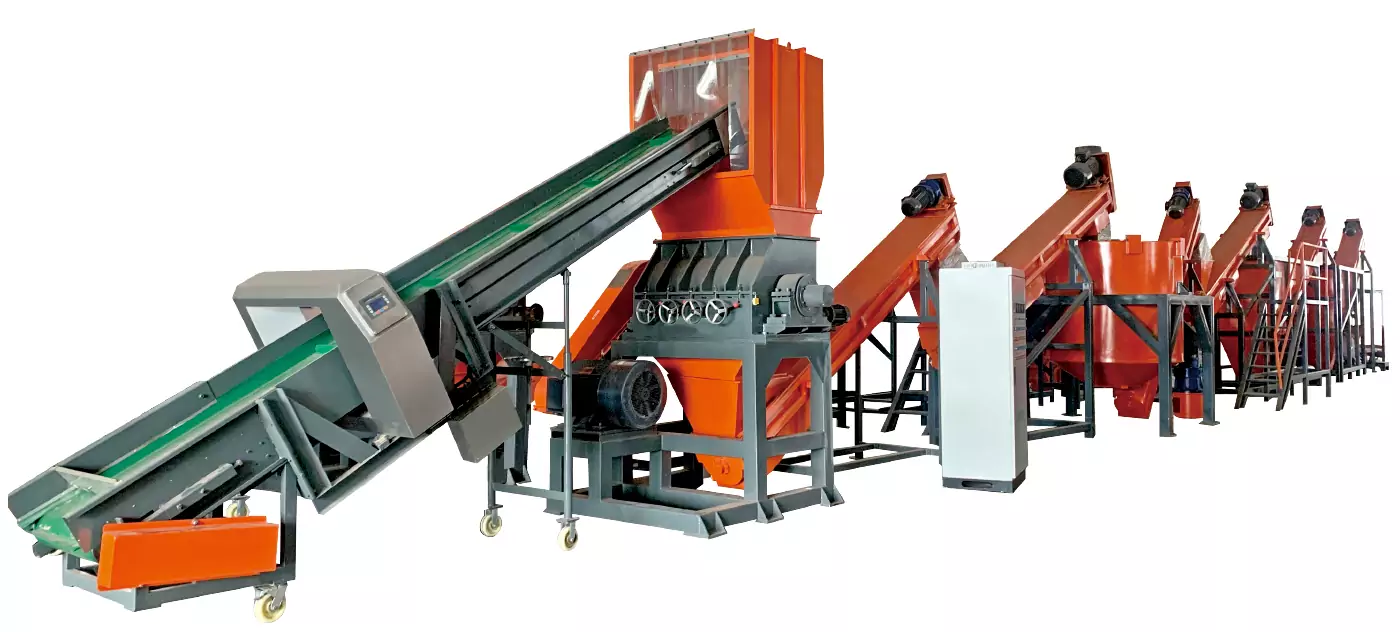

PET recycling line mainly includes plastic bottle label removal machine, plastic crusher, high-temperature washing barrel, rubbing washing machine, dewatering machine, etc. This PET recycling machine is mainly used to recycle waste mineral water bottles, Coke bottles, and PET plastic bottles.

PET-Recycling-Lines

PET plastic bottles are widely used to package carbonated drinks, mineral water, juice and other beverages. They are the most commonly used beverage packaging today. Not only that, PET is also widely used in many fields such as food, chemical industry, and pharmaceutical packaging. Global production and sales of PET bottles have reached 650 billion, and the growth rate is still rising.

PET Recycling Line Raw Material & Final Products:

PET-Bottle

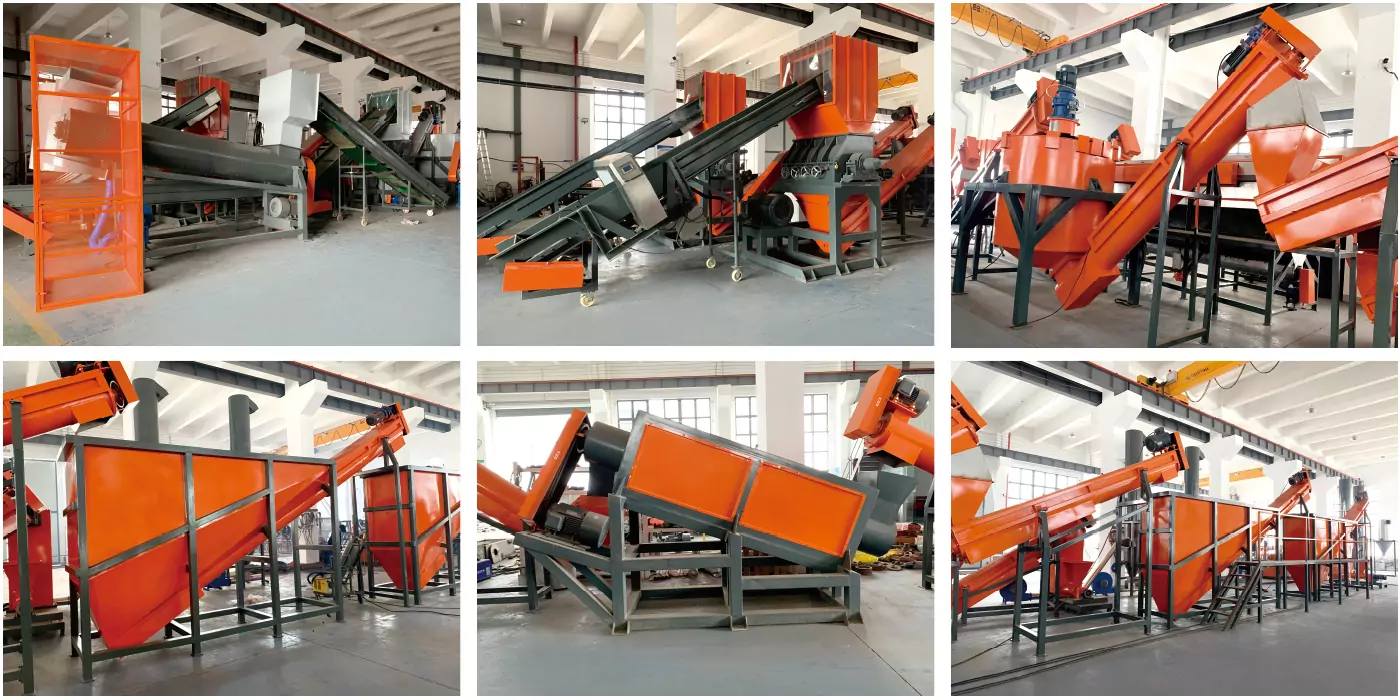

PET Washing Recycling Line Detail:

PET-Recycling-Line-Details

Bale breaker → Twin screw loader → Rotary screen → Belt conveyor → Label remover → Pre-washer → Intelligent optical sorting system → Manual sorting system → Crusher → Floating washer → Screw loader → Hot washer → High speed friction washer → Dewatering → Round floating washer → Floating washer → Dewatering → Pipe drying → Bottle label seperator → Compacting packing

PET Washing Recycling Line Technical Parameters:

Capacity(kg/h) Installation Power(kw) Manual Water Consumption(m³/h) Steam Use(kg/h) Area Required(㎡)
300 100 2~3 0.5 160 200
500 180 5~7 1 350 400
1000 320 8~10 3 500 750
2000 450 10~12 5 800 1000
3000 500 10~12 6 100 1500
