Detailed introduction

After many years of development, Starsplas Machinery plastic bottle recycling washing line and overall technical tread have become mature, with choice to make according to the different requirements of customers plastic bottle recycling washing machine. Purui Machinery use the mode of modularity to arrange smartly according to the different characteristics of recycled bottle all over the world, to achieve the best production and lowest input.

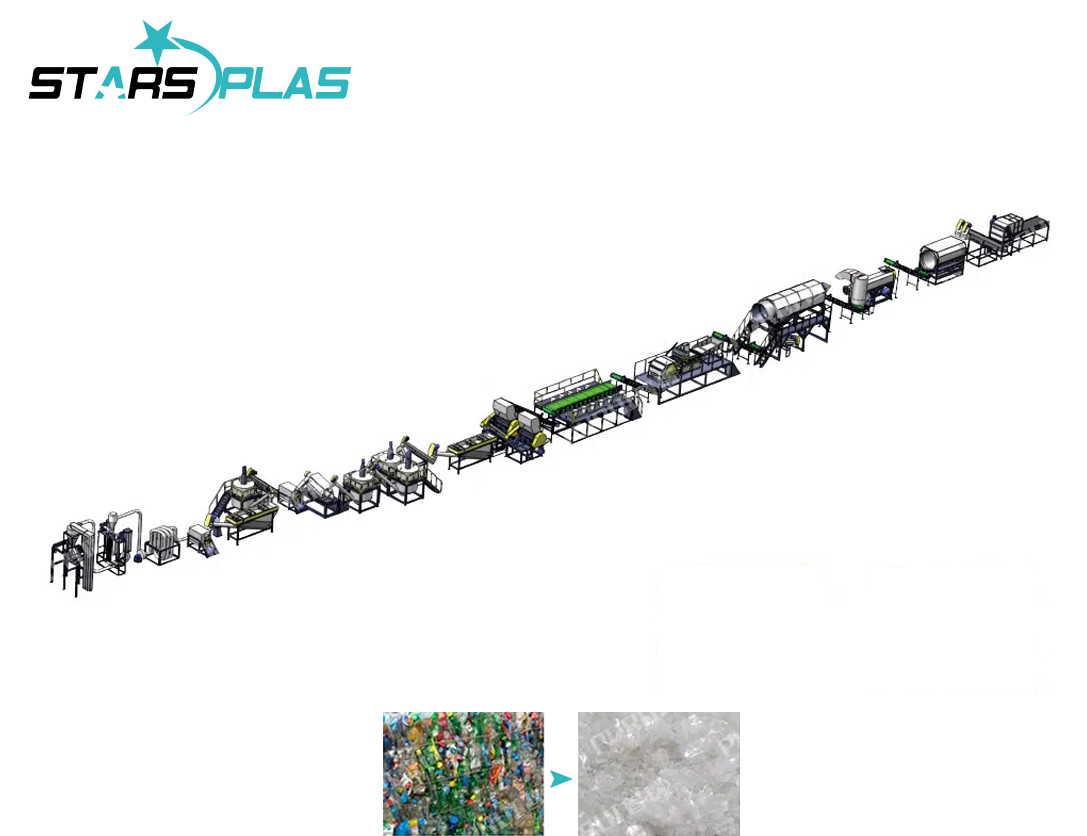

Plastic bottle recycling washing equipment is mainly used for crushing and cleaning plastic bottles, plastic buckets, coke bottles and other hard plastics, but also can be used for crushing and cleaning very dirty soft materials, the complete plastic bottle washing line includes: de-label machine, feeder, crushing and washing machine, boiler, cleaning tank, dehydrator and storage bin.

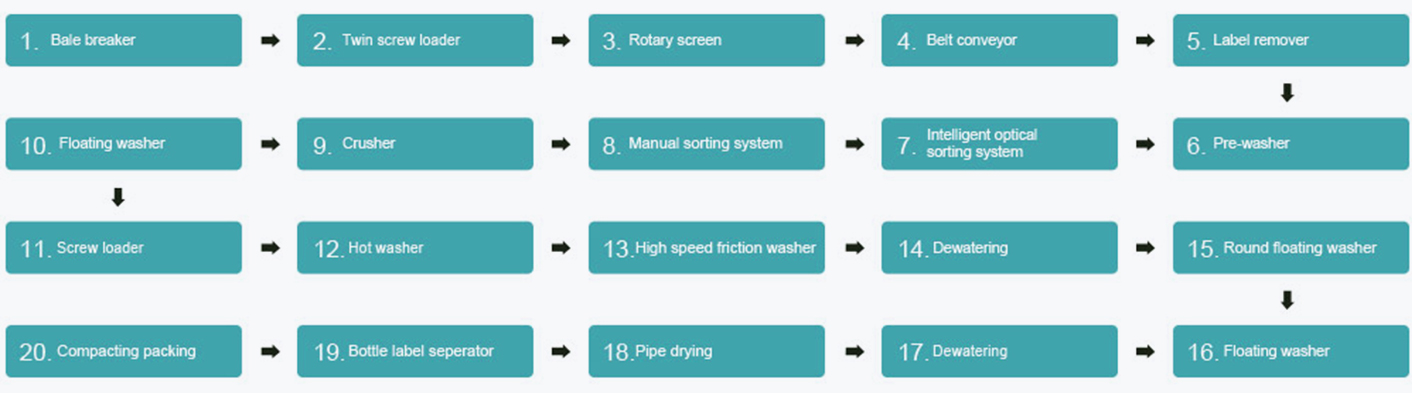

Work Process

Work Process

technical parameter

Capacity(kg/h) Total Power(kw) Area Required(㎡) Labour Required Water Consumption(m³/h)
300 210 240 3-4 1.5
500 340 360 4-5 3
1000 550 450 5-6 4.5
1500 800 520 5-6 6

Machine Detail







Belt Conveyor
The belt conveyor is for transport the plastics to crusher, which can directly and automatically transport. All contacted with raw material parts made of stainless steel,inverter control.









Crusher
To crush material into small sizes. With water to clean material and cool blades during crushing. Large materials are processed into small pieces in this module, which improves the washing result and makes the final product easy to packing.









Floating Washer
The sediment and metal in the material can be effectively separated through this module so as to protect environment from polluting.Material: stainless steel









Dewatering Machine
Advanced dewatering vibration sieve combing with horizontal-type centrifugal dewatering present high performance dried pellets and lower energy consumption.Combine crushing, compacting and plletizing steps in one system, less-labor cost.Higher efficiency feeding, suitable to film, filament, raffia, foaming materials;Higher output and lower energy consumption









Plastic Squeeze Dryer
Through plastic squeeze dryer, water and volume of the materials can be squeezed to increase the quality of the pellets and the efficiency of the extruders.
The moisture after squeeze dryer will be lowered down to 1-3%



Service guarantee

Custom Design

StarsPlas can customize the equipment for you according to your actual situation and requirements.

Accessories Supply

Our original accessories and kits meet the highest quality expectations and a large inventory is sufficient to meet your needs.

Customer Training

StarsPlas will provide high-quality training services with its own resource advantages and technical advantages.
