Detailed introduction

1. High efficiency
Compared with the primary design, the output of PURUI second generation squeezed film granulating line has been increased 20%.
2. Low power consumption
The power consumption reduces 15% compared with the primary design.
3. Highly automatic
Only 2 people are needed for one granulating production line.

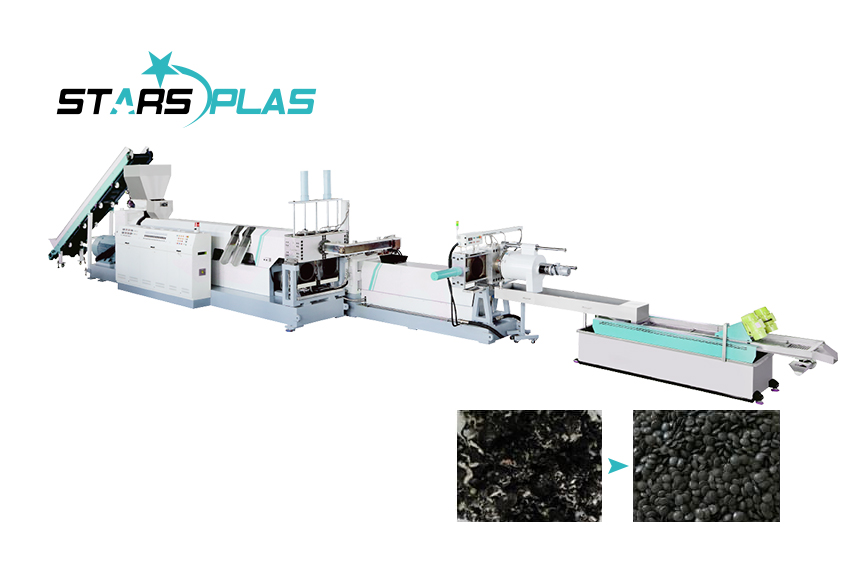

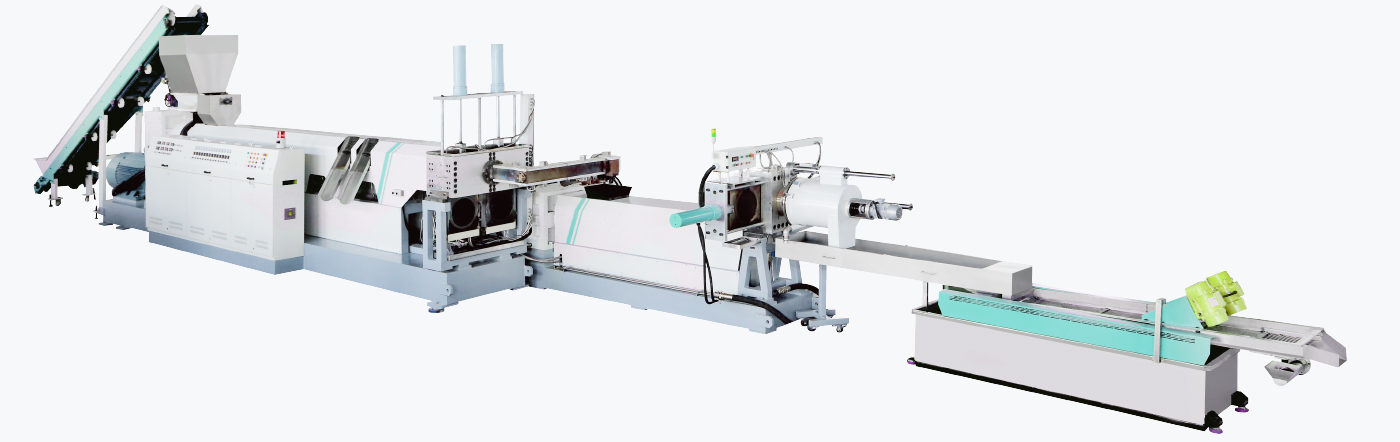

Squeezed Film Granulating Machine Work Process:
Feed film on the Belt conveyor machine and go into Compactor for cutting, heating, compacting and mixing, then enter the extruder for extruding.

Feed regrind material through the Spiral charger and Feeder on the extruder.

Instruction: the film and regrind material can be recycled separately or together, depending on customers’ different needs.

technical parameter

Normal:

Model ML85 ML100 ML130 ML160 ML160-Ⅱ
Output(kg/h) 120-200 200-400 400-650 600-1000 800-1200

High output, low consumption:

Model ML85B ML100B ML130B ML160B ML180B
Output(kg/h) 200-350 400-550 600-800 800-1200 1000-1500

Machine Detail







Belt Conveyor
The belt conveyor is for transport the plastics to crusher, which can directly and automatically transport. All contacted with raw material parts made of stainless steel,inverter control.









Crusher
To crush material into small sizes. With water to clean material and cool blades during crushing. Large materials are processed into small pieces in this module, which improves the washing result and makes the final product easy to packing.









Floating Washer
The sediment and metal in the material can be effectively separated through this module so as to protect environment from polluting.Material: stainless steel









Dewatering Machine
Advanced dewatering vibration sieve combing with horizontal-type centrifugal dewatering present high performance dried pellets and lower energy consumption.Combine crushing, compacting and plletizing steps in one system, less-labor cost.Higher efficiency feeding, suitable to film, filament, raffia, foaming materials;Higher output and lower energy consumption









Plastic Squeeze Dryer
Through plastic squeeze dryer, water and volume of the materials can be squeezed to increase the quality of the pellets and the efficiency of the extruders.
The moisture after squeeze dryer will be lowered down to 1-3%



Service guarantee

Custom Design

StarsPlas can customize the equipment for you according to your actual situation and requirements.

Accessories Supply

Our original accessories and kits meet the highest quality expectations and a large inventory is sufficient to meet your needs.

Customer Training

StarsPlas will provide high-quality training services with its own resource advantages and technical advantages.
